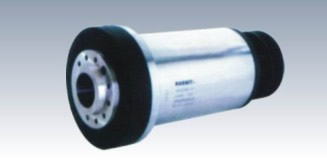

数控车床用机械主轴以APC、ADC系列为主,油脂润滑。
主轴型号 | 转速 | 外型尺寸Physical Dimensions(mm) | 润滑 Lubricate manners | 轴端链接 Joint of spindle nose | 轴承型号 | |||||||
Spindle type | Speed(r/min) | D | D1 | D2 | L | L1 | L2 | N-Фd1 | Фd2×13 | 外圆-内孔 Outside circle -Inside hole | Bearings type | |
APC80M2-60 | 6000 | 80 | -- | -- | 239 | 20 | 61 | -- | -- | 油脂 Grease | Ф43-莫2 Ф43-Mohs2 | 2×7007C/P5 |
2×7206C/P5 | ||||||||||||
APC120M3-24 | 2400 | 110 | 125 | 140 | 194 | 25 | 62 | 4-Ф6.6 | -- | 油脂 Grease | Ф32-莫3 Ф32-Mohs3 | 4×7010C/P5 |
APC120M4-40 | 4000 | 120 | -- | -- | 300 | 30 | 103 | -- | -- | 油脂 Grease | Ф60-莫4 Ф60-Mohs4 | 2×7010CTA/P4 |
2×7208CTA/P5 | ||||||||||||
APC130A5-28 | 6000 | 130 | 146 | 160 | 280 | 75 | 105 | 6-Ф9 | Ф14×9 | 油脂 Grease | A25-莫6 A25-Mohs6 | 3×7014C/P4 |
2×7014C/P4 | ||||||||||||
APC120A5-24 | 6000 | 120 | 138 | 154 | 231 | 56 | 108 | 6-Ф7 | Ф11×7 | 油脂 Grease | A25-莫5 A25-Mohs5 | 4×7011C/P4 |
2×7012C/P4 | ||||||||||||
APC145Az5-45 | 4500 | 145 | 165 | 154 | 315 | 92 | 219 | 6-Ф7 | Ф15×9 | 油脂 Grease | A25-莫5 A25-Mohs5 | 4×7015CTA/P5 |
2×7013CTA/P5 | ||||||||||||
APC145-24 | 4000 | 145 | 165 | 185 | 468 | 80 | 107 | 6-Ф9 | Ф15×9 | 油脂 Grease | A25-莫5 A25-Mohs5 | 3×7015C/P5 |
2×7013C/P5 | ||||||||||||
APC150-35 | 4500 | 150 | 180 | 200 | 350 | 78 | 71 | 8-Ф9 | Ф13.5×9 | 油脂 Grease | Ф130-Ф45 | 2×B7014AC/P4 |
2×b7012C/P4 | ||||||||||||
APC175Az5T-45 | 4500 | 175 | 205 | 200 | 271 | 70 | 147 | 6-Ф11 | Ф17×10 | 油脂 Grease | A25T-莫6 A25T-Mohs6 | 1×7216C/P4DB |
1×7216C/P4DB | ||||||||||||
APC200Az5-40 | 4000 | 200 | 240 | 270 | 468 | 80 | 107 | 8-Ф11 | Ф18×10 | 油脂 Grease | A26-莫5 A26-Mohs5 | 4×7215CTA/P4 |
2×7213CTA/P4 | ||||||||||||
APC200Az6-45 | 4500 | 200 | 220 | 240 | 297 | 90 | 121 | 8-Ф11 | Ф18×10 | 油脂 Grease | A26-莫6 A26-Mohs6 | 3×7018CTA/P4 |
2×7016CTA/P4 | ||||||||||||
APC202Az6-38 | 1000 | 202 | 230 | 260 | 380 | 99 | 110 | 6-Ф14 | Ф20×13 | 油脂 Grease | A26-莫6 A26-Mohs6 | 3×7020C/P4 |
2×7218C/P4 | ||||||||||||
APC205A6T-40 | 4000 | 205 | 230 | 260 | 389 | 95 | 245 | 6-Ф13 | Ф20×13 | 油脂 Grease | 1×234420M/P4 | |
A6T-Ф67/3 | 1×NN2020ASK/P4 | |||||||||||
1×7218C/P4DB | ||||||||||||
APC205Az6-40 | 4000 | 205 | 230 | 260 | 315 | 92 | 95 | 6-Ф12 | Ф20×13 | 油脂 Grease | A26-Ф73/⊿1:20 | 3×7020C/P4 |
2×7218C/P4 | ||||||||||||
APC250A11T-33 | 3300 | 250 | 280 | 310 | 840 | 148 | 65 | 8-Ф11 | Ф18×12 | 油脂 Grease | A11-Ф100/⊿1:20 | 1×NN3024ASK/P4 |
1×nn3026ASK/P4 | ||||||||||||
APC300-A11T-30 | 1000 | 300 | 350 | 400 | 300 | 95 | 150 | 8-Ф18 | Ф26×18 | 油脂 Grease | A11-Ф145/1:20 | 2×B7003AC/P5 |
2×B7208AC/P5 | ||||||||||||
APC11-18 | 6000 | 110 | 128 | 144 | 271 | 70 | 147 | 6-Ф7 | Ф11×6.5 | 油脂 Grease | Ф45-Ф26 | 2×7010C/P4 |
2×7011C/P4 | ||||||||||||
APC160-35 | 4500 | 160 | 187 | 206 | 350 | 77 | 70 | 8-Ф9 | Ф14×9 | 油脂 Grease | Ф95-Ф51 | 3×7015C/P4 |
2×7013C/P5 | ||||||||||||
APC140-30 | 6000 | 140 | 160 | 178 | 305 | 72 | 123 | 6-Ф9 | Ф14×9 | 油脂 Grease | Ф63.5-Ф45 | 4×7013AC/P5 |
